IntegraStyle®

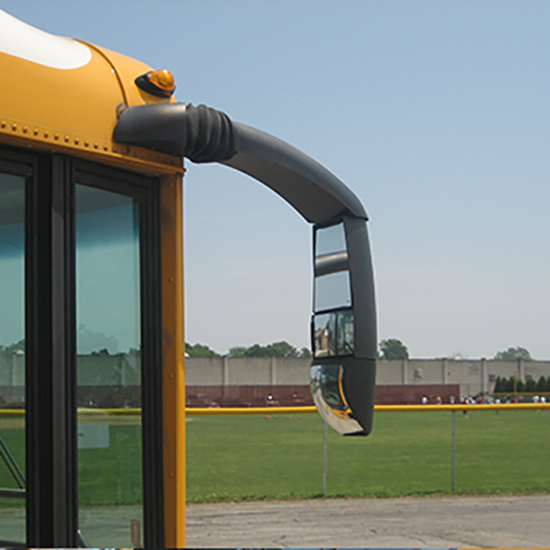

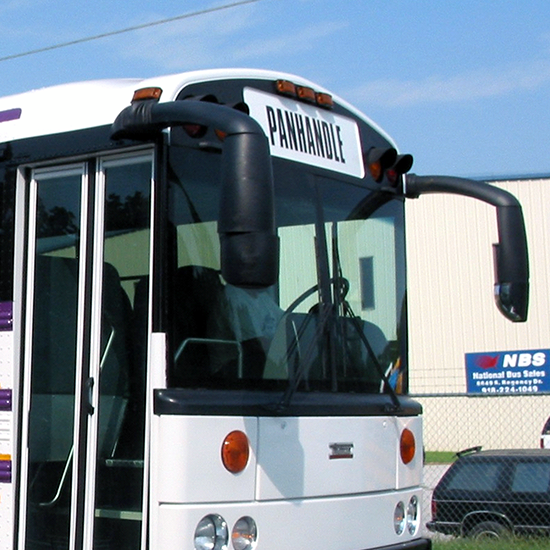

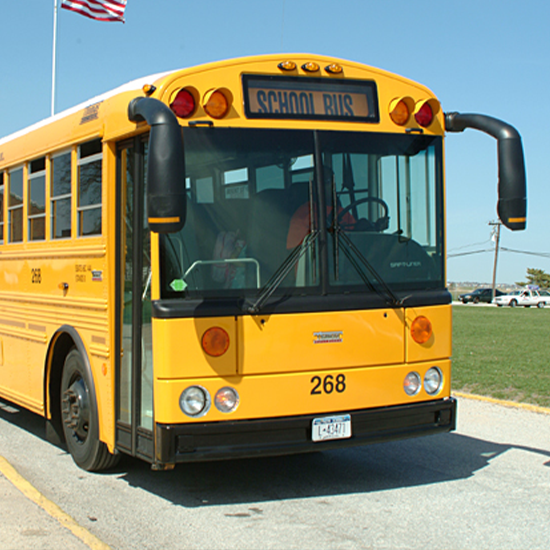

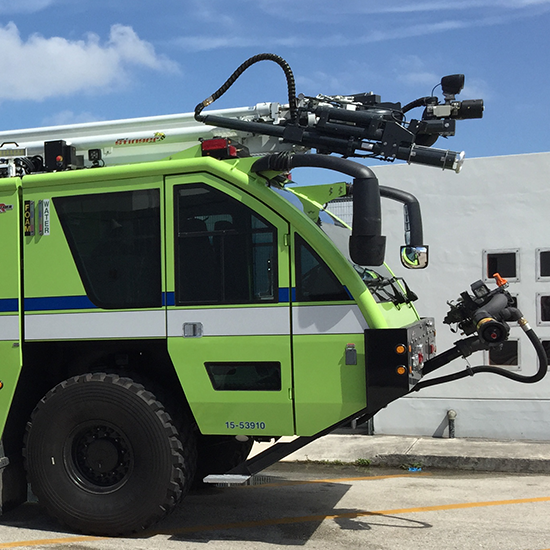

The unique, first of its kind three lens mirror system, IntegraStyle®, is a modern aerodynamic mirror system that protects any vehicle with multiple views.

IntegraStyle® image

IntegraStyle® image

IntegraStyle® image

IntegraStyle® image

IntegraStyle® small image
IntegraStyle® small image
IntegraStyle® small image
IntegraStyle® small image

The development of the IntegraStyle® concept coincided with the development of the Thomas® “New Look MVP” bus. Thomas® engineers were looking for a modern aerodynamic mirror system to complement the appearance and performance of their bus. In addition, they wanted a system that eliminated all the clutter associated with tubular mirror arms and braces. The IntegraStyle® mirror was the answer.

  • New, modern design compliments the aerodynamic characteristic of the vehicle.
  • No visible fasteners or wires.
  • Reduced maintenance required (fewer components due to integration of all 3 lenses in a single mirror head).
  • Highly reliable construction tested under extreme road and weather conditions.
  • Rigid structure prevents vibrations.
  • Housing made from heavy-duty A.S.A. injection molded resin.
  • Flat and convex mirrors are separately four-way motorized and heated with manually-adjusted units also available.
  • Break-away mechanism allows mirror head to “fold” upon collision with an obstacle, avoiding costly repairs.
Complete Assembly
PART NODESCRIPTION
32A2F41CCPIntegrated mirror system with crossview and rearview sections. Hand adjustable. Driver and passenger sides.
32A2F42CCPIntegrated mirror system with crossview and rearview sections. Hand adjustable. Heated driver and passenger sides.
32A2F41BBPIntegrated mirror system with crossview and rearview sections. Motorized. Driver and passenger sides.
32A2F42BBPIntegrated mirror system with crossview and rearview sections. Motorized. Heated driver and passenger sides.
32A2KE1CCPIntegrated mirror system with crossview and rearview sections. Hand adjustable driver and passenger sides. Canadian specifications.
32A2KE2CCPIntegrated mirror system with crossview and rearview sections. Hand adjustable. Heated driver and passenger sides. Canadian specifications.
 32A2KE1BBPIntegrated mirror system with crossview and rearview sections. Motorized.Driver and passenger sides. Canadian specifications.
32A2KE2BBPIntegrated mirror system with crossview and rearview sections. Motorized. Heated. Driver and passenger.


Hand Adjustable Non-Heated
PART NODESCRIPTION
32A2H41CCPIntegrated mirror system with crossview and rearview sections. Hand adjustable. Driver side.
32A2C41CCPIntegrated mirror system with crossview and rearview sections. Hand adjustable. Passenger side.
M1016Rearview section, including flat & convex glass & carrier assemblies. Hand adjustable.
GLA3005Flat glass.
GLA4009Convex glass
CAR5002Flat carrier assembly. Hand adjustable.
CAR5003Convex carrier assembly. Hand adjustable.


Hand Adjustable Heated
PART NODESCRIPTION
32A2H42CCPIntegrated mirror system with crossview and rearview sections. Hand adjustable. Heated. Driver side.
32A2C42CCPIntegrated mirror system with crossview and rearview sections. Hand adjustable. Heated. Passenger side.
M1016HRearview section, including flat & convex glass & carrier assemblies. Hand adjustable. Heated.
GLH6001Flat glass. Heated
GLH6501Convex glass. Heated.
CAR5002Flat carrier assembly. Hand adjustable.
CAR5003Convex carrier assembly. Hand adjustable.
HAR2015Wire harness for heated mirror assembly.


Motorized Non-Heated
PART NODESCRIPTION
32A2H41BBPIntegrated mirror system with crossview and rearview sections. Motorized. Driver side.
32A2C41BBPIntegrated mirror system with crossview and rearview sections. Motorized. Passenger side.
1016Rearview section, including flat & convex glass & carrier assemblies. Motorized.
GLA3005 Flat glass.
GLA4009 Convex glass.
CAR5005Flat carrier assembly. Motorized.
CAR5004Convex carrier assembly. Motorized.
HAR2013Wire harness for motorized mirror assembly.


Motorized Heated
PART NODESCRIPTION
32A2H42BBPIntegrated mirror system with crossview and rearview sections. Motorized. Heated. Driver side.
32A2C42BBPIntegrated mirror system with crossview and rearview sections. Motorized. Heated. Passenger side
1016HRearview section, including flat & convex glass & carrier assemblies. Motorized. Heated.
GLH6001Flat glass. Heated.
GLH6501Convex glass. Heated.
CAR5005Flat carrier assembly. Motorized
CAR5004Convex carrier assembly. Motorized.
HAR2012Wire harness for motorized heated mirror assembly


Crossview
PART NODESCRIPTION
3490 Crossview mirror assembly
3490H Crossview mirror assembly. Heated.
3490/1 Crossview lens.
3490/H/1 Crossview lens. Heated.
RIM 1046 Mounting gasket for crossview lens.


Mirror Arm

PART NODESCRIPTION
ASY4401Arm assembly. Driver side.
ASY4402Arm assembly. Passenger side.
ASY4475Arm cover kit.
ASY4450Cap-boot assembly. Driver side.
ASY4451 Cap-boot assembly. Passenger side.
